Moving to SL
JR: Local images
DS: So yes the last bit of the puzzle last night was getting into SL
DS: i can do that i think if you want to try
JR: sure let’s, i want to see what this new texture i made looks like
DS: yes ok open the blend file
JR: yes i am in the shading layout
DS: ok
JR: i should think one could “just” wire the normals to some kind of output thing
DS: on the menu at top select World yes thats what we will do
JR: World??
JR: in blender?
DS:

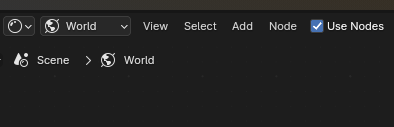

DS: top left of node window there is Object, world, linestyle
DS: select world
JR: yes found it

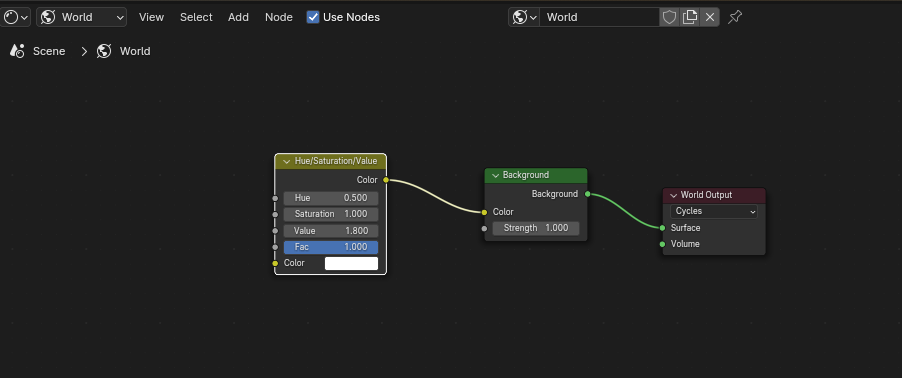

DS: we are going to set up a simple backgrond illumination
JR: hm ok
DS: you should have two of these
JR: i have nothing
DS: mm
DS:
JR: they were hiding. there must be some keystroke to bring it into view. i have two things not three
DS: yes we need to add the HUe/stat its a colour node
JR: ok added and hooked up

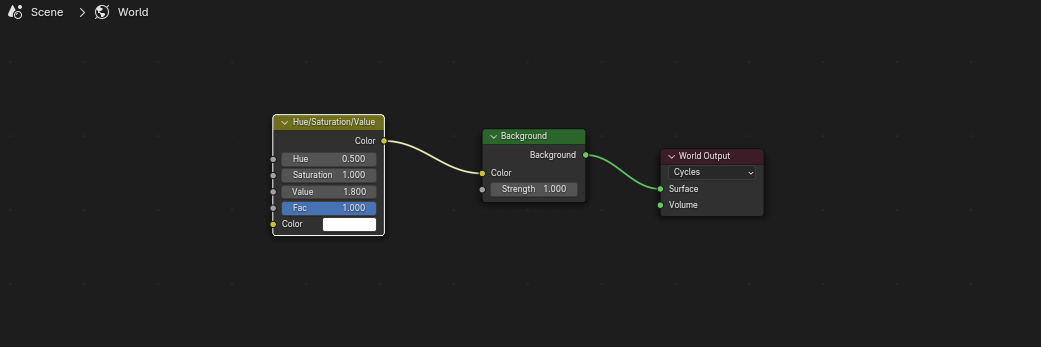

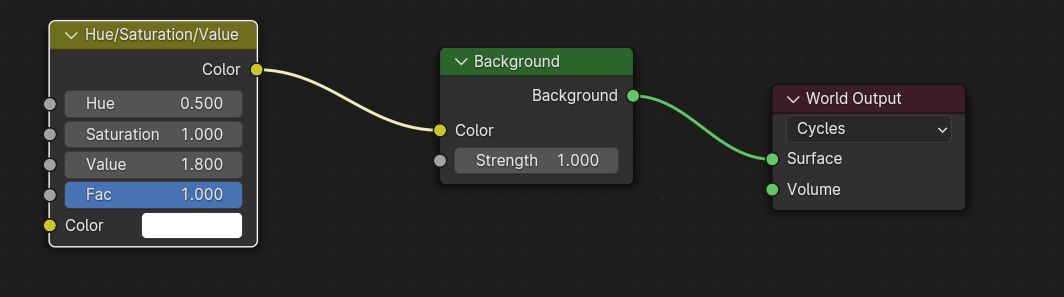

DS: wire it like this
DS: ok so go back to object veiw
DS: on the node window
JR: yes
DS: we are going to add two image textures as output
JR: ok

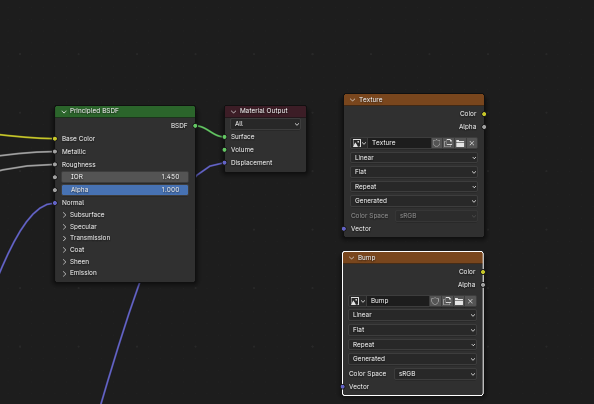

DS:

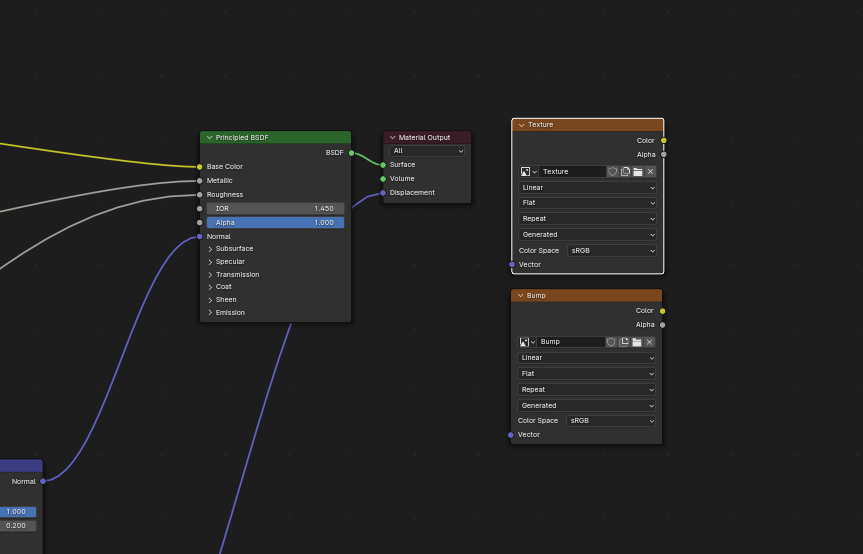

DS: create two textures as 1k x 1k and name then texture and bump using new on the selector
JR: whoa
DS: they dont connect to anything
JR: wait for yes please
JR: how did you name them
DS: dooulbe clicked on the untitled name
JR: the nodes
DS: yes
JR: where is this untitled name of which you speak

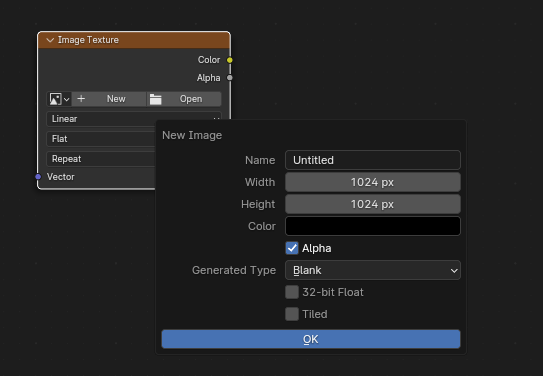

DS: ok let me screeshot it when you click new on the node it looks like this
JR: yeah. alpha or no alpha?
DS: none
JR: yours is checked
DS: doesnt really matter
JR: should color space be sRGB or none?
DS: may need to set alpha to none in SL if you do sRGB i think
JR: hm ok i guess i have the two things there then
DS: ok so in the top right menu theres a drop down beside the last circle called “shading
”
JR: yes
DS: select scene world
JR: yes
JR: new view
DS: so then the background is white
JR: yes whiteish
DS: yes ok
JR: hue 1.8 i suppose, whatever that is
DS: yes its really just a white light that illuminates from all sides
JR: yes
DS: the next thing if find the renedr tab
JR: the one with cycles / eveee
DS: and open it yes
JR: ok yes
DS: make sure you are in cycles
JR: yes
DS: i use the GPU but you can use CPU too
JR: yes they cannot use my GPU they are too stupid
DS: so CPU
JR: yes
DS: ok now we are going to bake the colour texture fist
DS: first
JR: ok
DS: select the cube and also select the texture output node
DS:
JR: ok i guess
DS: you need both or it will error and say not selected
JR: yes

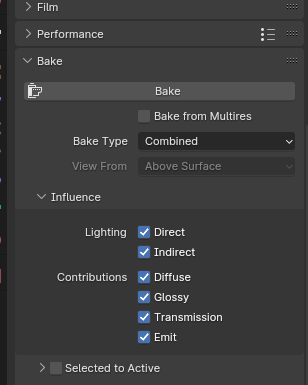

DS: ok in the render tab open bake
DS: and set combined
JR: yes
DS: now hit bake your fans will run
DS: as it renders the texture for the object
JR: i have no fans. done
DS: ok
JR: and it appeared on the left

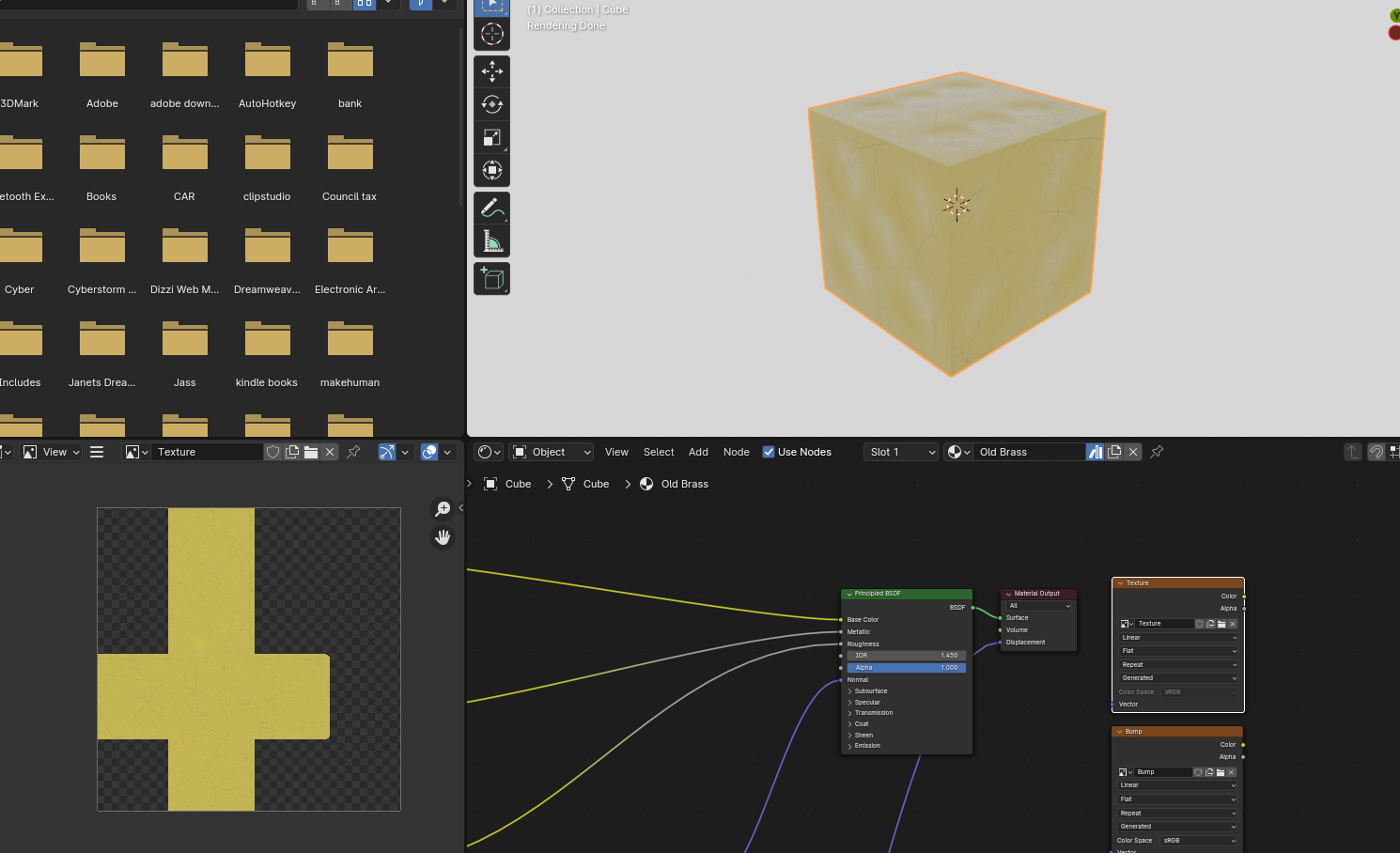

DS:
DS: yes looks like that
?
JR: yes
DS: greate
JR: looks okish
DS: -e yes should see the scratches etc
JR: has all the shapes on it
JR: yes
DS: yes
JR: just drawn on of course
DS: ok
JR: i imagine i want to save this somehow?
DS: yes hambuger image/save as
DS: i usually use TGA but PNG or Jpg is ok
JR: used PNG. done
DS: now select the lower output node
DS: the bump
JR: yes
DS: and select Normal in the bake window
DS:
JR: ok

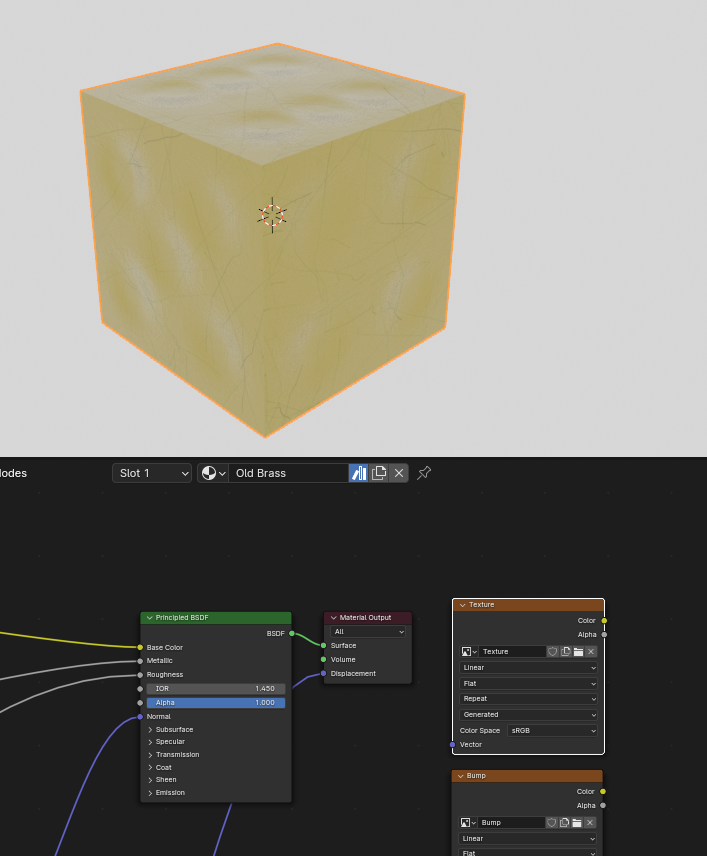

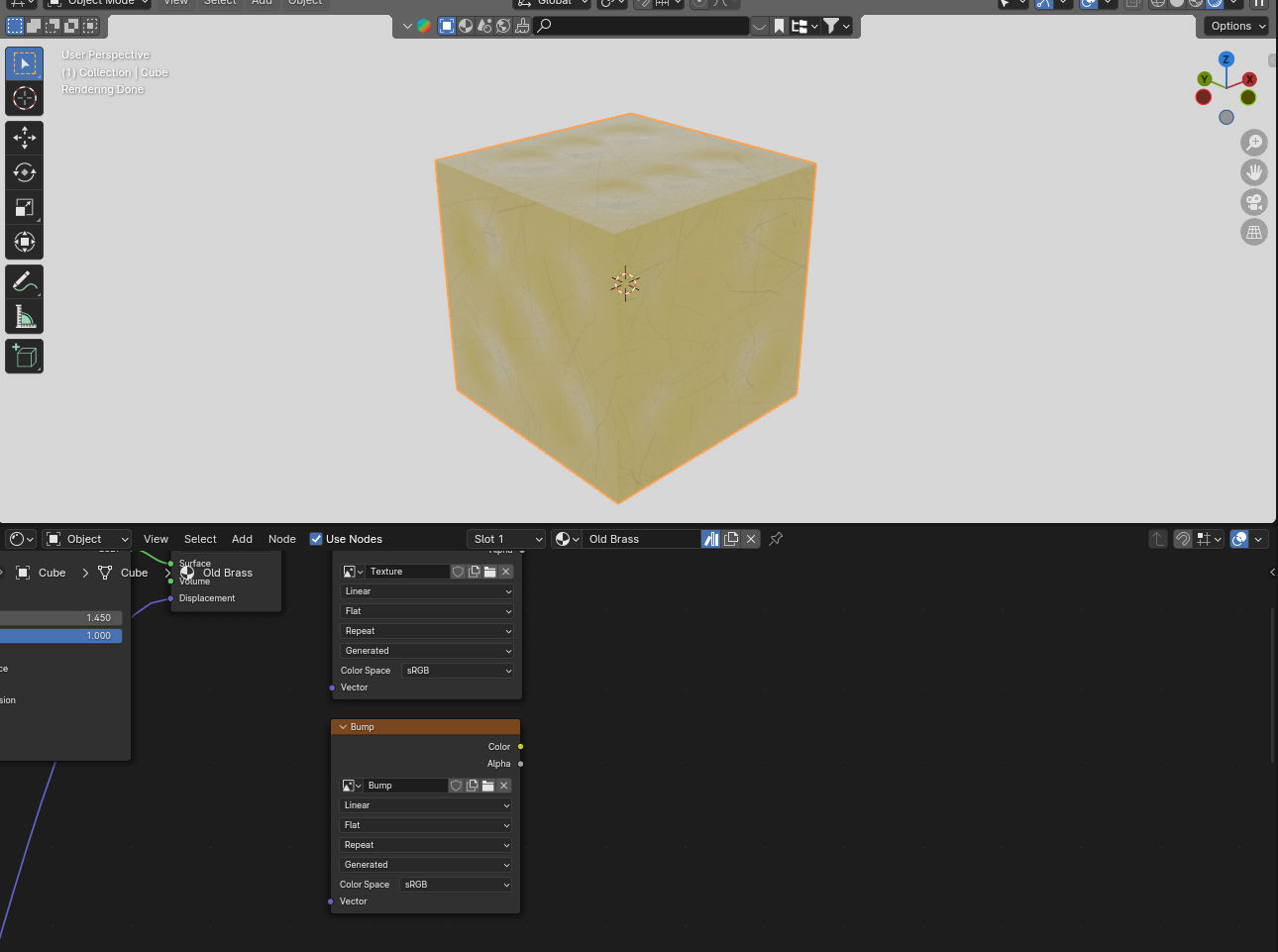

DS: hit bake should get this

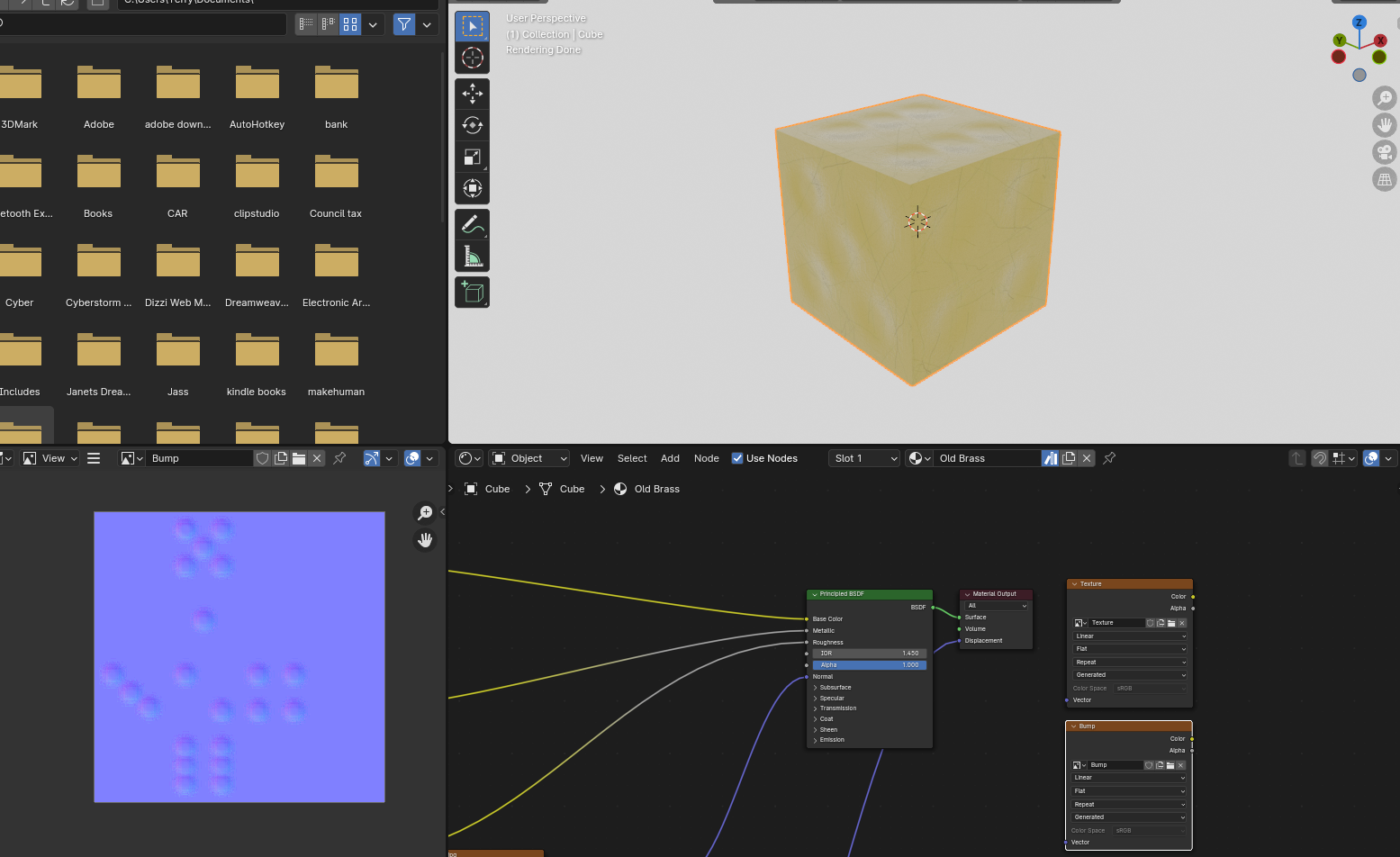

DS:
JR: yes. save that?
DS: yes so the last thing we need is to export the cube
DS: as a DAe
JR: hm ok
DS: because we modified the cube with a different UV we need to use that cube
JR: the unwrap?
DS: not a standard yes
JR: so now i just build it?
DS: we want the cubes mesh with the unwraps we made
JR: so upload all three and apply?
DS: just upload the mesh as a collada and bring into SL
DS: 2m cube
DS: :)
JR: f’g 2 meter cubes
DS: so now just put the texture and bump into the cube
JR: don’t i have to upload them first?
DS: so youll need to bring them in yes
JR: ok got em
DS: so we can do it as none PCR first load the texture and bumpiness
JR: ?

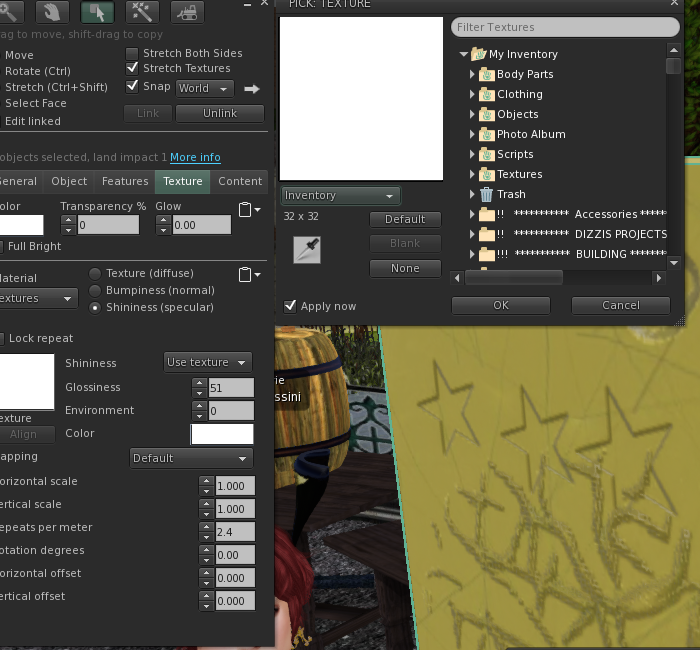

DS: edit cube tesxture
JR: in the edit ok
JR: not PBR?
JR: BlinnPhong?
DS: yes we can then make a PBR too
DS: same files
JR: so diffuse gets the regular texture?
DS: yes
JR: hm drag works that’s nice
DS: then bump into bumpiness mm
JR: ok so that worked as expected
JR: looks ok to you?
DS: yes i gave it a little shinyness
DS:
JR: interesting fact: the numbers there are the S values on the gray scale i drew with
DS: then the embosing stands out
JR: seem to have no effect on the depth
DS: no that seems to have worked fine
JR: also those flat panels on the one side with the rivet things?
JR: those were gradients. i was kind of expecting a wedge shape but got that
DS: ok
JR: the other stuff worked nicely tho
DS: yes so now you can make a PBR material
DS: using the two textures and copy that cube and aplly it
JR: i’m not clear where the textures go in PBR
DS: ns told us one sec
JR: it is showing me 5 squares
DS: ok i get 4? texture goes in base color
DS: bump goes in normal
JR: i tried dragging texture into base color and nothing happened
DS: and a blank texture in Metalic have you created a new material
?
JR: only if someone told me to
DS: DS: so now you can make a PBR material
DS: using the two textures
DS: so material folder
JR: oh that
DS: make new materail create new
JR: and drag those guys in or ?

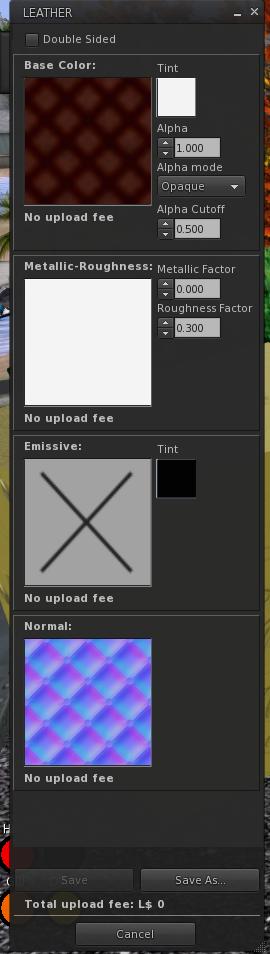

DS: hees one i made for leather
DS: base colour is the texture, normal is the bump metalic just create a blank texture
JR: ok i think i did it
DS: emmisive leave
JR: didn’t change when i set blank on metallic
DS: so its metal so set to 1.000 in metalic
JR: probably ok
DS: and rougness 0.3 then save
JR: yes
JR: now i can just slam that onto the white cube?
DS: then drag it to a face bosh
JR: i love that dent
DS: hehe
JR: not sure how i did that
DS: i think that works :)
JR: yes, thank you
DS: far better than the other cube
JR: i almost know how to do it
JR: yes it is, even in my weak sauce viewer
DS: now you can get more complex with the nodes like adding in a logo onto the texture as a separate image then baking all together
JR: yes clearly one can stack them sim to the two we have
DS: yes now NS only has one output
JR: now the limits are back to my inherently weak artistic ability :)
DS: but i prefer making the outputs into separate images so they dont overwrite but you can bake all and save then bake normal then save
JR: oh somehow she baked out just one file?
DS: yes
JR: oh you mean she till saved two but didn’t make a new image
JR: still*
DS: i just discovered that way this afternoon thats right
JR: baked to X saved X backed normal to X saved again
JR: we baked to X and Y
JR: this is better IMO
DS: this way it will prompt you to save both if you exit yes
DS: its simpler for my brain
DS: :)
JR: yes thanks, i nearly know how to do it
DS: yes
DS: :) its very powerful isnt it
JR: it is. and it’s kind of like assembler or something. no way to just do what you want, you build it up out of 19 tiny unit operations
DS: yes
JR: i suppose, however, one could build an add-on
DS: but then you can save node trees of combine into a black box
JR: yes i suppose you can and then bring them in and edit
JR: yes interesting idea
DS: yes NS made me a node tree for shiny metal and i just cut and pasted that for all the garrat
JR: i’ll brb, short break
DS: ok inn loo ill
JR: back
DS: wb
JR: t
DS: i just added this

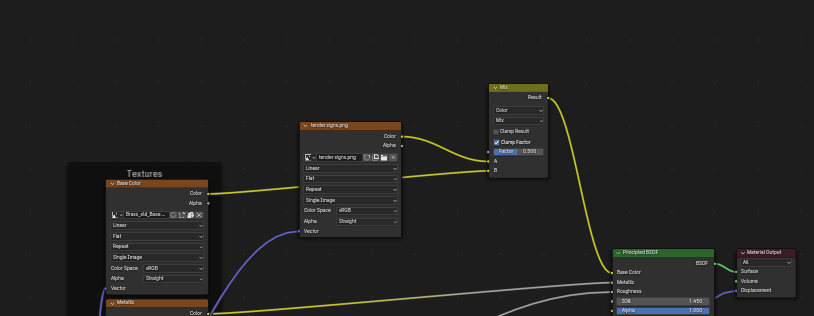

DS:
JR: can’t really read the gyazo but ok
DS: added in the logos
JR: yes
DS: so there are other tricks NS uses like adding a bevel to edges
JR: with texture?
DS: no she calculates it in nodes
JR: in the model side
DS: and mixes it into the normals yes
JR: hm, no not if she’s mixing it. i guess i’d have to see the network
DS: yes the nextwork is using the mesh to determine the edges neading to bevel
DS: needing is nice for stuff like the crankshafts
JR: be nice to have a library of networks
DS: yes
JR: i just ate a piece of leftover prime rib and think i may regret it
DS: aww
JR: probably won’t kill me but fridge isn’t as cold as it might be
DS: no
JR: oh if i don’t show up tuesday i’m probably dealing with installers. no telling what time they’ll come.
DS: so when is new fridge coming? yes
DS: a week on tuesday ill be out until late
JR: i am hopeful that it’ll go smoothly
JR: ah?
DS: theres a “meet the examiner” meeting in York at 730pm
JR: what does the examiner examine?
DS: and its 30 mins away IAM
DS: the things im learning sooner or later they test you
DS: and you get the Intitute of Advanced Motorists test cert useful for insurance companies
JR: ah cool :)
JR: so you get a few exams along the way?
DS: apparently you can do a masters too its continual assesment
DS: and when you are ready they say do the test
JR: ah
DS: but you have to do stuff to a good sdtandard so i will have to improve my braking
DS: i brake to early so i need to stop at yeild lines more exactly
JR: maybe find an empty parking lot and practice a bunch
DS: yes he told me a trick that helped
JR: close eyes and scream SCREEEEE?
DS: on the way back from the cattery i had to emerge from a blind sideroad i managed that without halting
DS: since all was clear but im on 3rd lesson
JR: yes. mosty a matter of thinking and practice
DS: they say its about 14 lessons average yes
DS: planing
JR: but an assessment week after next?
DS: Information, Position, Speed, Gear, Acceleration no
DS: just a meet and greet with an examiner and the rest of the people doing the course
JR: ah i see
DS: so we can see hes human
DS: :) so i may not get back in time
DS: ill probably stay out for less stress timewise
JR: ok. remind us that monday :)
DS: ill have to drive back around york bypass i will
DS: so was pleasing that the free street charging worked ok and the car took charge at a rate of 7kw
DS: must be for people visiting pock
JR: yes that’s good
DS: park up and go shopping get charge to go home
DS: was cahrging at about 30 miles per hour
JR: yes
DS: was just thinking, i bet that clock behind us would look great in PBR
JR: probably would, yes
JR: a lot of stuff would
DS: the thin i also did today was to use that hue and saturation node to set a colour rathe than using a texture NS made which had 3 lights for the world
DS: since PBR now calculates all the shadows and reflections
JR: what would have happened without that background light?
DS: i just wanted illumination from all angles the texture would be black
JR: k
DS: if you added a light source that would be baked in like a spot lamp
DS: i did that on shallots bed i knew where the bedside lamps were
DS: so i maked in the shadows baked
DS: we dont need to do that in PBR
JR: ok
JR: so i am supposing one just used PBR from here on out?
DS: i think so but as you saw its same two files
JR: although i guess legacy people see grey or something?
DS: use old way or new
JR: but the object has to be one or the other?
DS: yes yes legacy sees grey
DS: like you did
JR: well * ‘em
DS: yes
JR: i should log, i guess
